DINSLAKEN (DE) - 2017-02-10 20:24:39 - Magnitude 2.6
Last update : 2017-03-20 15:28:42 Belgian time

Main parameters

Date and time 2017-02-10 20:24:39 UTC
2017-02-10 21:24:39 Belgian time
Type Suspected induced event
Magnitude ML 2.6
Region DINSLAKEN (DE)
Epicentral coordinates 51.581° N, 6.864° E Uncertainty ± 4.7 km
Depth of hypocenter 5.5 ± 4.8 km

Data source : ROB (Royal Observatory of Belgium)

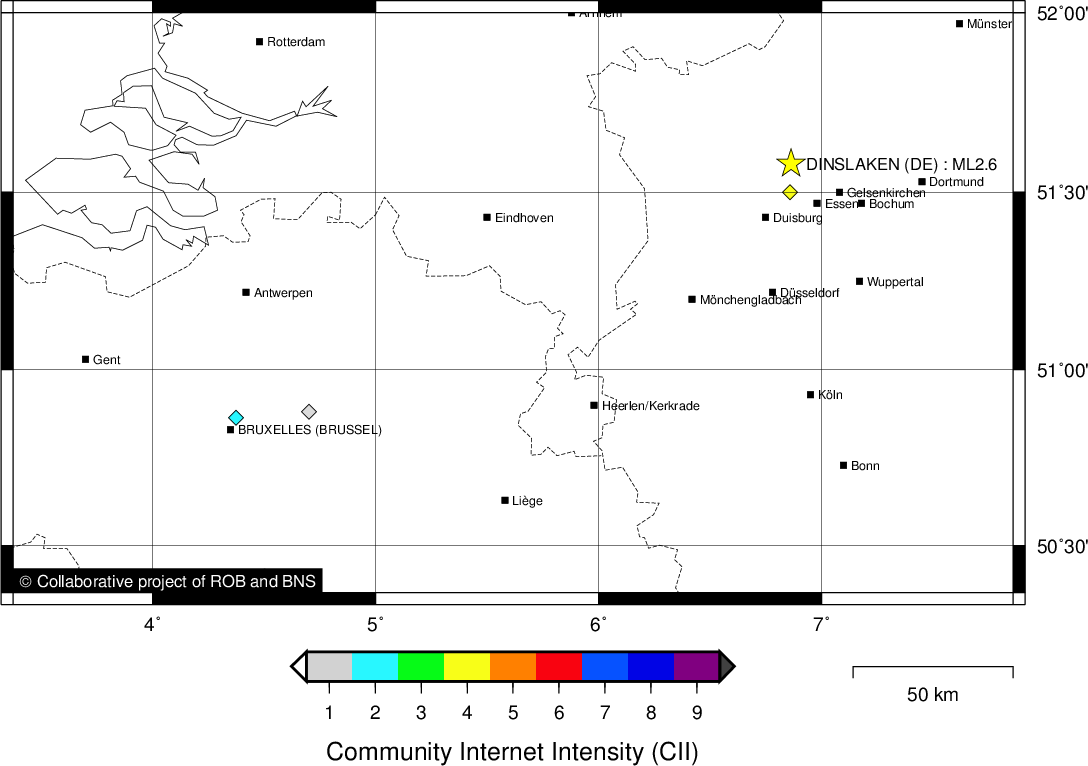

Location map

Quake measurements

Measurements by the Belgian seismic network
Station Epicentral
distance (km)
P-Wave arrival (hh:mm:ss.ss) S-Wave arrival (hh:mm:ss.ss) Maximal ground
displacement (nm)
Code Place
EBN EBEN-EMAEL 120 20:25:00.00 - -
MEMS MEMBACH 124 20:25:00.49 20:25:15.35 -
MEMH MEMBACH 124 20:25:00.65 20:25:15.26 -
MRG MONT RIGI 131 20:25:01.07 20:25:17.47 -
LCH LA CHARTREUSE 137 20:25:02.35 20:25:19.85 -
STI SART TILMAN 144 20:25:03.80 - -
HOU HOUVEGNEZ 149 20:25:04.31 - -
CLA CLAVIER 169 20:25:06.70 - -
Measurements by the Dutch seismic network of KNMI (Royal Netherlands Meteorological Institute)
Station Epicentral
distance (km)
P-Wave arrival (hh:mm:ss.ss) S-Wave arrival (hh:mm:ss.ss) Maximal ground
displacement (nm)
Code Place
HGN HEIMANSGROEVE 112 20:24:57.99 20:25:13.20 -

Macroseismic

Data
Total number of responses 3
Intensity I 1
Intensity II 1
Intensity IV 1

Attention! The intensities derived from the macroseismic enquiry are raw unverified data.
