ST GOAR (DE) - 2016-12-22 05:32:17 - Magnitude 2.7
Last update : 2017-01-26 17:30:08 Belgian time

Main parameters

Date and time 2016-12-22 05:32:17 UTC
2016-12-22 06:32:17 Belgian time
Type Earthquake
Magnitude ML 2.7
Region ST GOAR (DE)
Epicentral coordinates 50.133° N, 7.688° E Uncertainty ± 1.9 km
Depth of hypocenter 10.1 ± 2.2 km

Data source : ROB (Royal Observatory of Belgium)

Location map

Quake measurements

Measurements by the Belgian seismic network
Station Epicentral
distance (km)
P-Wave arrival (hh:mm:ss.ss) S-Wave arrival (hh:mm:ss.ss) Maximal ground
displacement (nm)
Code Place
VIA VIANDEN 108 05:32:36.13 05:32:47.48 196.8
KLB KALBORN 113 05:32:36.81 05:32:49.86 120.2
WLF WALFERDANGE 122 05:32:37.80 - -
HOU HOUVEGNEZ 122 05:32:38.18 05:32:52.02 229.4
MRG MONT RIGI 122 05:32:38.59 05:32:53.30 96.7
MEM MEMBACH 130 05:32:39.92 05:32:54.30 106
EBN EBEN-EMAEL 160 05:32:43.63 05:33:02.16 140.8
STI SART TILMAN 159 05:32:43.86 - -
RCH ROCHEFORT 176 05:32:46.09 05:33:03.73 -
CLA CLAVIER 173 05:32:46.12 05:33:05.44 57
GES GESVES 187 05:32:47.97 05:33:06.63 41.8
MRD MAREDSOUS 209 05:32:50.80 05:33:12.79 71.9
DOU DOURBES 221 05:32:51.85 05:33:16.26 30
SNF SENEFFE 246 05:32:54.28 - -
SKQ STEENKERQUE 262 05:32:57.37 05:33:25.07 25.9
LES LESSINES 280 05:33:02.15 05:33:28.33 28.4
Measurements by the German seismic network of Bensberg (University of Cologne)
Station Epicentral
distance (km)
P-Wave arrival (hh:mm:ss.ss) S-Wave arrival (hh:mm:ss.ss) Maximal ground
displacement (nm)
Code Place
BGG BURG ELTZ 26 05:32:23.20 05:32:26.39 -
KOE KÖPPEL 33 05:32:23.46 05:32:26.79 -
HIL HILLESHEIM 74 05:32:31.14 05:32:39.92 -
STB STEINBACHTALSPERRE 79 05:32:31.78 - -
HOB HOHBUSCH 98 05:32:34.58 - -
BNS BENSBERG 99 05:32:34.96 - -
KLL KALLTALSPERRE 113 05:32:37.44 - -
DRE DREILÄGERBACH 119 05:32:38.30 - -

Macroseismic

Data
Total number of responses 9
Intensity III 3
Intensity I 4
Intensity II 2

Attention! The intensities derived from the macroseismic enquiry are raw unverified data.

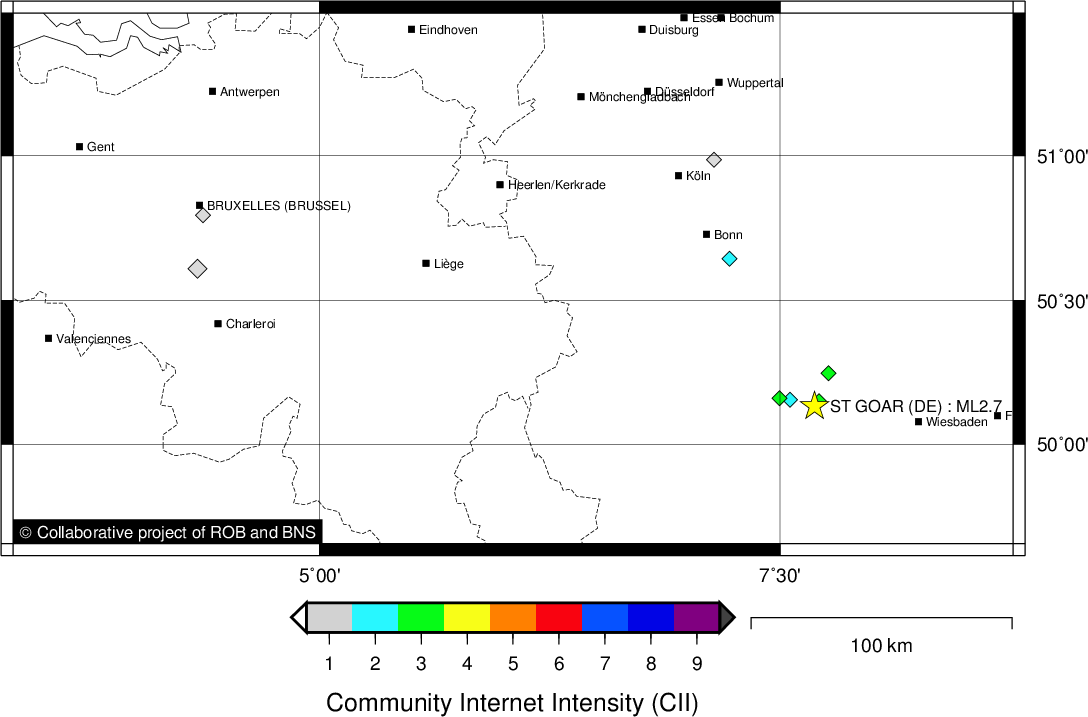

Map
